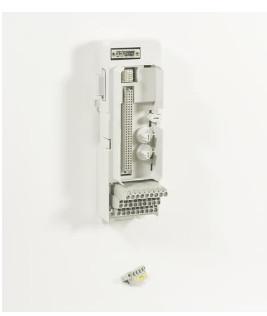

Product ABB TU891 3BSC840157R1 MTU

The TU891 MTU has gray terminals for field signals and process voltage connections. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel, but these are primarily constrained to specific values by the design of the I/O modules for their certified application. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

Two mechanical keys are used to configure the MTU for different types of I.S. I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. The keys used on the TU891 are of the opposite gender to those on any other type of MTU and will mate only with IS I/O modules.

Features and benefits

• Intrinsic safety applications - use with AI890, AI893, AI895, AO890, AO895, DI890 and DO890
• Compact installations of I/O modules
• Field signals and process power connections
• Connections to ModuleBus and I/O modules
• Mechanical keying prevents insertion of the wrong module
• Latching device to DIN rail
• DIN rail mounting
