Brand Name : ABB
Model Number : CI854K01
Certification : COC
Place of Origin : Sweden
MOQ : 1 Piece
Price : $4000/PC
Payment Terms : T/T, Western Union
Supply Ability : 9999 pieces per year
Delivery Time : In Stock
Brand : ABB
Part Number : CI854K01
Product ID : 3BSE025961R1
Quality : Brand New and Original
Warranty : 1 year
Term of Quotation : EXW
Shipping Term : Fedex, DHL, UPS
PROFIBUS DP is a high speed multipurpose bus protocol (up to 12Mbit/s) for interconnecting field devices, like remote I/O, drives, low voltage electrical equipment, and controllers. PROFIBUS DP can be connected to the AC 800M via the CI854A communication interface. The Classic CI854A includes two PROFIBUS ports to realize line redundancy and it also supports PROFIBUS master redundancy. The CI854B is the new PROFIBUS-DP master that replaces CI854A in new installations.
Master redundancy is supported in PROFIBUS-DP communication by using two CI854A communication interface modules. The master redundancy can be combined with CPU redundancy and CEXbus redundancy (BC810). The modules are mounted on a DIN rail and interface directly with the S800 I/O system, and other I/O systems as well, including all PROFIBUS DP/DP-V1 and FOUNDATION Fieldbus proficient systems.
The PROFIBUS DP must be terminated at the two outermost nodes. This is usually done by using connectors with built-in termination. To guarantee a correct working termination the connector has to be plugged and power supplied.
SB822 3BSE018172R1 | DI818 3BSE069052R1 |
AI820 3BSE008544R1 | AO820 3BSE008546R1 |
PFEA112-65 3BSE050091R65 | PM803F 3BDH000530R1 |
PM860K01 3BSE018100R1 | TU849 3BSE042560R1 |
AI830A 3BSE040662R1 | CI854K01 3BSE025961R1 |
CI854BK01 3BSE069449R1 | TU810V1 3BSE013230R1 |
IMCIS02 | SPDSO14 |
INICT13A | CRBX01 |
![]() |

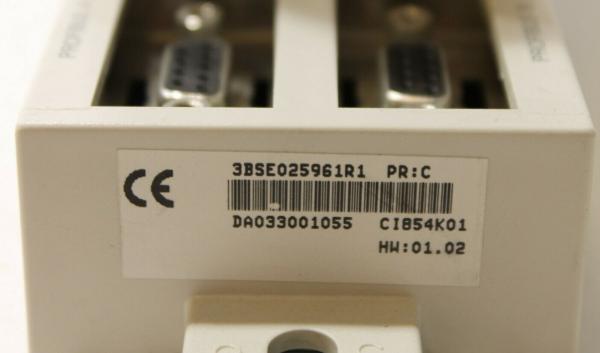

ABB CI854K01 3BSE025961R1 PROFIBUS-DP Communication Images |
