Product:General Electric IC693CHS398 5-Slot Expansion Baseplate GE IC693CHS398
There can be no more than a total of 50 feet (15 meters) of cable interconnecting Expansion baseplates and the CPU baseplate.
An Expansion baseplate cannot stand alone. It must be connected to a system that has a CPU. The CPU can be in a PLC or in a Personal Computer that is equipped with a Personal Computer Interface Card (see Chapter 11).
Maximum number of Expansion baseplates allowed per system depends on the type of CPU they are used with. For CPUs 331, 340, and 341, the maximum is 4. For CPUs numbered 350 and higher, the maximum is 7.
Each Expansion baseplate has a 25-pin female D-type I/O Bus Expansion connector mounted at its right end for connection to other baseplates.
Available in two versions; 5-slot (IC693CHS398) and 10-slot (IC693CHS392)
An Expansion backplane does not support the following intelligent option modules: PCM, ADC, BEM330, and CMM. These modules must be mounted in a CPU baseplate. All other I/O and option modules can be mounted in any type of rack.
All Expansion baseplates must be connected to a common ground (see the “Installation” chapter for details).
Expansion baseplates are the same physical size, use the same type power supplies, and support the same I/O and option modules as the Remote baseplates.
Each Expansion baseplate has a Rack Number Selection DIP switch.
Hot sale series:
General Electric IC63 / IC695 / IC697 / IC698 / IC200 / IC660 / IC670 and other CPU modules, communication modules, analog digital modules.
EX2100, EX2000 Excitation system card IS200 series, DS200 series.
Our advantage brands:
BENTLY EPRO ALL SERIES OF PRODUCTS SPAR PARTS PROBE Proximitor
PLC : AB,ABB,GE,Schneider
DCS : ABB,Siemens MOORE,Foxboro,Westinghouse,YOKOGAWA
ESD : Triconex,HIMA,BENTLY,ICS Triplex
Excitation cards : ABB,GE
Recommended Products:
| DS200PCCAG8ACB |
| DS200SDCCG1ACA |
| DS200ADPBG1ABB |
| DS200DTBBG1ABB |
| DS200SLCCG1ACC |
| DS200SHVMG1AGE |
| DS200KLDBG1ABA |
| DS200SLCCG1AAA |
| DS200DMCBG1ABA |
| DS200DMCBG1ACB |
| DS200GSIAG1ACA |
| DS200CPCAG1ABB |
| DS200SLCCG1A |
| DS200PCCAG7ACB |
| DS200DPCBG1AAA |
| DS200FSAAG2ABA |
| DS200PCCAG10ACB |
| DS200SDCCIAGD |
| DS200ADCIH1ADB |
| DS200RTBAG3AHC |
| DS200RTBAG3A |
| DS200DMCAG1EA |
| DS200SBCBG1ADC |
| DS200SSBAG1BAA |
| DS200PCCAG7ACB |
| DS200KLDCG1AAA |
| DS200SHVMG1AFE |
| DS200RTBAG3AGC |
| DS200RTBAG3AHC |
| DS200SHCBG1ABC |
| DS200RTBAG3AFB |

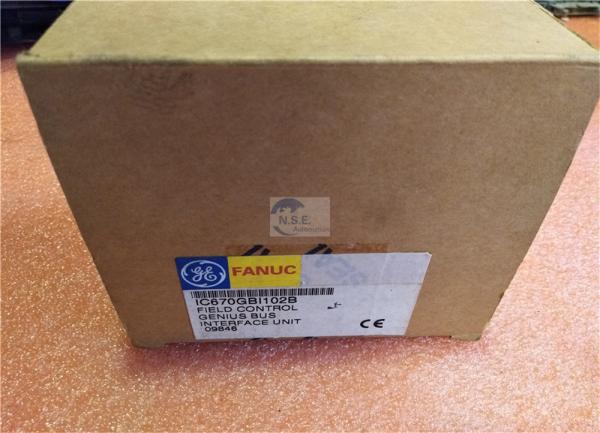

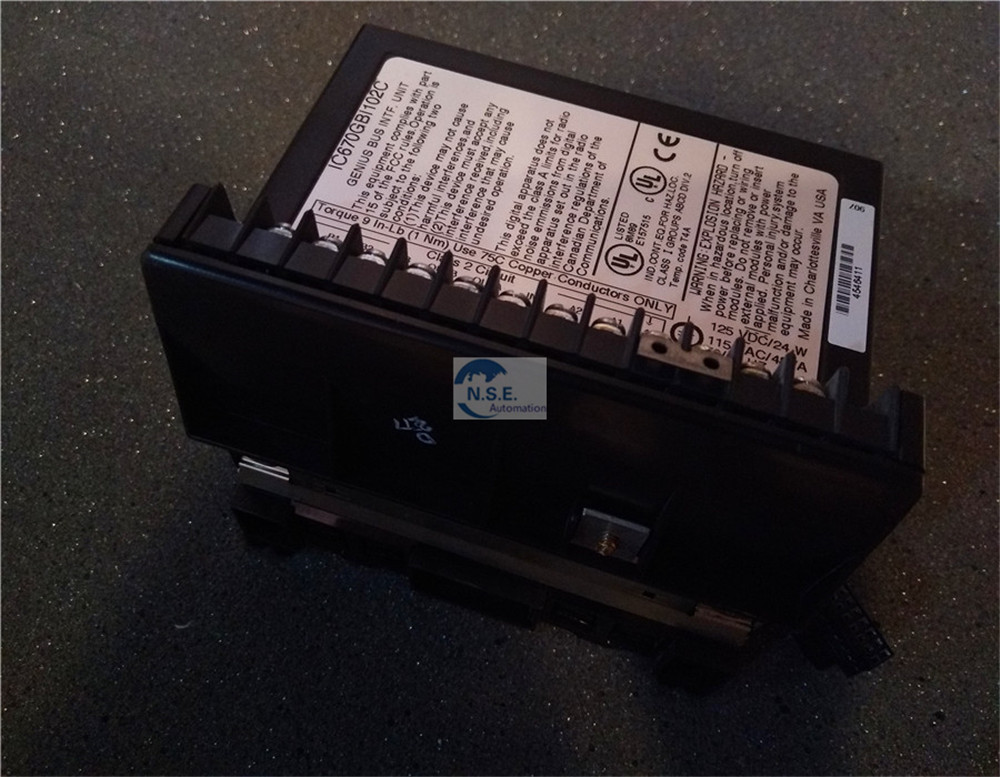

Products Pictures:
